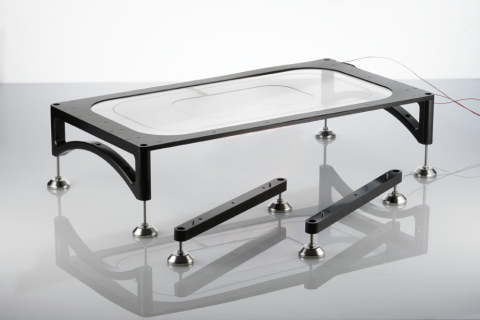

H401-GLASS TABLE



The ITO glass table realizes a flat and transparent surface at controlled temperature. Ideal for stereo microscopes.



It requires H401-T-CONTROLLER or H401-T-PENNY.





Features



T range: ambient to 60°C

T sensor accuracy: ±0.1°C

T accuracy on specimen: ±0.3°C, after self calibration, if room temperature remains within ±1°C

4.3'' touch screen interface

On-board data logging and download routines to USB drive

Plate calibration can be performed in the lab by the operator

Glass thickness: 2 mm

Adjustable height:

from 31 to 37 mm

from 75 to 105 mm

Dimensions

H401-T-CONTROLLER - The most advanced dual channel controller

H401-T-PENNY - Accuracy made simple

REQUIRED CONTROLLERS

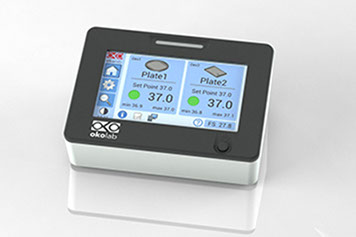

H401-T-CONTROLLER



2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.



External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.



On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.



The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.



Features



T - range: from ambient to 60°C

T - accuracy on specimen: ± 0.3°C

4.3'' touch screen interface

External T - sensor (included)

On-board Data logging and download routines to USB drive

On-board logging of calibration and alarm events

Alarm buzzer and External Alarm Connector

One controllers can control independently up to two devices

Self calibration routines allow to improve temperature accuracy

Password protected procedure for periodic calibration against certified thermometer

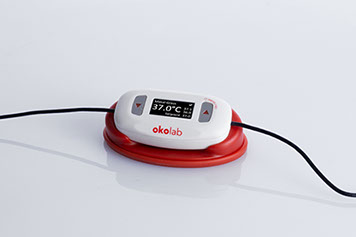

H401-T-PENNY



H401-T-PENNY is a compact single-channel Temperature Controller compatible with any OKOLAB heating device that combines performance and simplicity at an unbeatable price.



Features



Temperature range: from ambient to 60°C

Set point resolution: 0.1°C

Calibration via addition of offset

Maximum Output: 60 W

Dimensions: 83.65x45.05x20.20 mm

Weight: 47.50 g

"Okolab is a provider of complete and reliable solutions for Live Cell Microscopy"



for more information on OKO LAB products we supply, Contact us direct.
