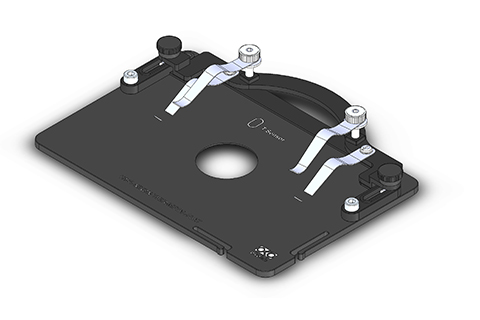

H401-NIKON-TS2R-METAL



The Metal T Plate creates a warm flat temperature controlled surface perfectly flush with the microscope stage and features a circular observation opening in the center. It employs a surface sensor to ensure the highest accuracy on temperature reading.



It requires H401-T-CONTROLLER or H401-T-PENNY.

Features



Flush with Nikon stages TC-S-SR, TC-S-SRF and TS2-S-SM - Flat

Temperature range: from ambient to 60°C

Accuracy on specimen: ± 0.3°C

Circular observation opening for imaging: 24 mm diameter

Easy plate replacement, if necessary

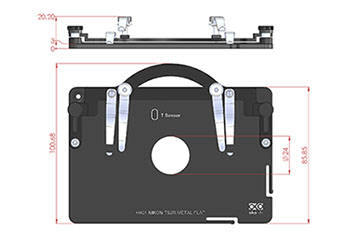

Dimensions

H401-T-PENNY - Accuracy made simple

H401-T-CONTROLLER - The most advanced dual channel controller

REQUIRED CONTROLLERS

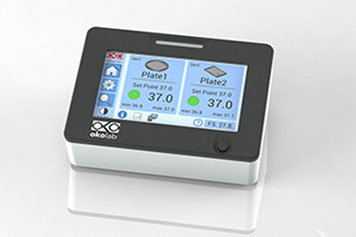

H401-T-CONTROLLER



2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.



External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.



On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.



The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.



Features



T - range: from ambient to 60°C

T - accuracy on specimen: ± 0.3°C

4.3'' touch screen interface

External T - sensor (included)

On-board Data logging and download routines to USB drive

On-board logging of calibration and alarm events

Alarm buzzer and External Alarm Connector

One controllers can control independently up to two devices

Self calibration routines allow to improve temperature accuracy

Password protected procedure for periodic calibration against certified thermometer



H401-T-PENNY



H401-T-PENNY is a compact single-channel Temperature Controller compatible with any OKOLAB heating device that combines performance and simplicity at an unbeatable price.



Features



Temperature range: from ambient to 60°C

Set point resolution: 0.1°C

Calibration via addition of offset

Maximum Output: 60 W

Dimensions: 83.65x45.05x20.20 mm

Weight: 47.50 g
