The Stage Heater covers the entire TC-S-SR, TC-S-SRF and TS2-S-SM Nikon stages and provides a flat, smooth surface at controlled temperature. It clamps on the stage and it is fixed in place by set crews positioned on the vertical sides of the plate. The Stage Heater leaves the observation hole open.


It is possible and recommendable to use the Stage Heater in combination with Glass Heated Insert. In this configuration, the H401-T-CONTROLLER uses one channel to control the metal PAD and the other channel to control the Glass Insert. Models available for Nikon and Olympus stages.


Recommended controller: H401-T-CONTROLLER.

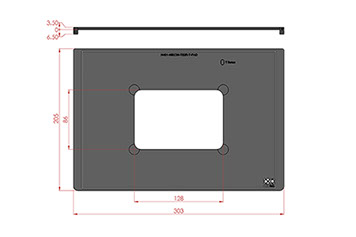

This plate rises the focal plane by 5 mm

Clamps on the TC-S-SR, TC-S-SRF and TS2-S-SM Nikon stages and creates a flat surface at constant T

Temperature range: from ambient to 45°C

Accuracy: ±0.3°C

4.3'' touch screen controller

On-board Data logging and download routines to USB drive

Compatible with Glass Plates

Easy to fix on stage

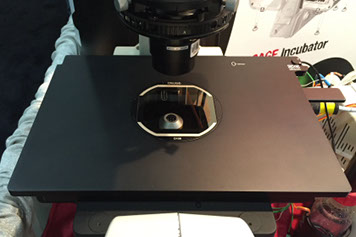

H401-NIKON-TI-SR-T-PAD - image during exhibition

On-Board Data Logging




2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.


External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.


On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.


The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.




T - range: from ambient to 60°C

T - accuracy on specimen: ± 0.3°C

4.3'' touch screen interface

External T - sensor (included)

On-board Data logging and download routines to USB drive

On-board logging of calibration and alarm events

Alarm buzzer and External Alarm Connector

One controllers can control independently up to two devices

Self calibration routines allow to improve temperature accuracy

Password protected procedure for periodic calibration against certified thermometer




H401-T-PENNY is a compact single-channel Temperature Controller compatible with any OKOLAB heating device that combines performance and simplicity at an unbeatable price.




Temperature range: from ambient to 60°C

Set point resolution: 0.1°C

Calibration via addition of offset

Maximum Output: 60 W

Dimensions: 83.65x45.05x20.20 mm

Weight: 47.50 g

"Okolab is a provider of complete and reliable solutions for Live Cell Microscopy"


for more information on OKO LAB products we supply, Contact us direct.
