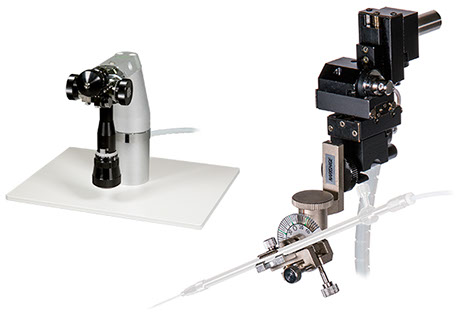

MMO-4VM  - Three-axis Hanging Joystick Oil Hydraulic Micromanipulator


    The MMO-4VM micromanipulator features an oil hydraulic joystick enabling smooth three-dimensional movement with a single lever. Conversion from right to left-hand use is no longer necessary. Improved Joystick which is the key of control, greatly reduces the risk of unwanted movement from the oil pressure. Hanging joystick enables users to manipulate comfortably with the arms and hands placed on the table. Operation is therefore done in a natural posture, and can be maintained for longer periods. Improved universal joint (UT-10) included, enables stable and accurate attachment of a pipette.


    Accessories included IP Iron Plate

    UT-10 Universal Joint (with Angle Gauge)

    Movement range Fine X10mm, Y10mm, Z10mm

    Full rotation of knob 250µm

    Minimum graduation 2µm

    Movement range Joystick (for maximum movement in X-Y plane) 2mm

    Dimensions/Weight Control unit W177 × D70 × H178mm, 1.76kg

    Drive unit W70 × D40 × H87mm, 168g

    Hydraulic tube length 0.9m

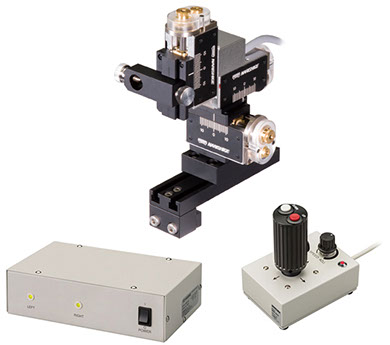

MM-94 & MM-94B – Motor-Drive Course Manipulator



    This motor-drive coarse manipulator is used for initial positioning of the pipette within the microscope field of view. It is controlled remotely using the joystick. Z-axis moves at double the speed of X/Y-axis, so that time for sample change will reduce. MM-94 is the set of dedicated drive unit for right-side, controller, and controll unit.


    Accessories included Power Cord, Hex Wrench

    Movement range Coarse X22mm, Y22mm, Z22mm

    Driving speed X/Y axis 1.4mm/s (with use of high-speed button)

    Maximum speed 0.7mm/s (with use of speed adjusting knob)

    Minimum speed 0.1mm/s (with use of speed adjusting knob)

    Z axis 2.8mm/s (with use of high-speed button)

    Maximum speed 1.4mm/s (with use of speed adjusting knob)

    Minimum speed 0.2mm/s (with use of speed adjusting knob)

    Working voltage AC100 ~ 240V, 50/60Hz

    Power consumpution Approx. 10W

    Dimensions/Weight Control unit W204 × D135 × H62mm, 1.05kg

    Controller W70 × D100 × H120mm, 530g, Connecting cable (1.2m)

    Drive unit W85 × D112 × H144mm, 591g, Connecting cable (1.2m)


IM-11-2VM – Pneumatic Microinjector

Smooth and comfortable pneumatic control for both injecting and holding sides


    The IM-11-2 is a pneumatically operated microinjector that allows suction and injection of a microsample with high precision and operability comparable to oil hydraulic injectors. Equipped with a coarse-fine coaxial control knob, the microinjector enables both coarse and fine movement operation. The IM-11-2 has substantially improved on the amount of pressure change per knob rotation, thereby enabling finer and more powerful control.


    Accessories included:

    Injection Holder (HI-9)

    Cleaning Rod

    Tubing (CT-1-1.5, CT-4)

    O-ring (IMO10)

    Silicone Grease

    Silicone Rubber Gasket (HI01PK01)

    Hex Wrench

    Movement range Plunger 40mm

    Dimensions/Weight W167 ~ 214 × D55 × H78mm, 680g

    Tube length 1.2m

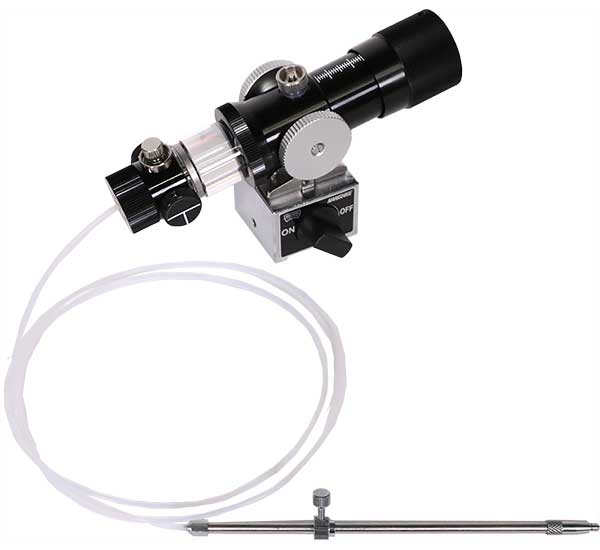

IM-21 Microinjector

Simplify troublesome oil filling and air bubble removing.


    Compact, high-performance oil microinjector equipped with new functions which simplify troublesome oil filling. Useful for various purposes such as ICSI, injection of DNA, RNA, CRISPR Cas9 in mammalian eggs and fish eggs, injection of ES cells and IPS cells, nuclear transfer and cell pick-up.


    Accessories included:

    Injection Holder Set (IM-H3)

    Cleaning Rod

    Silicone Rubber Gasket (HI01PK01)

    O Ring (IMO4)

    Silicone Grease

    Movement range Plunger 20mm

    Full rotation of knob 500µm

    Control capacity Full rotation of knob approx. 10µl

    Dimensions/Weight W127 ~ 147 × D56 × H78mm, 620g

    Tube length 1m






MTK-1 Takanome


    Once having been set, the innovative fan-shaped driver never fails to return to where the pipette tip is supposed to be. The newly installed knob allows a pipette to move along its axis by using traditional and smooth oil hydraulic joystick. This manipulator will spare the laborious work of a pipette alignment with the optical axis, providing more time for objective operation.


    Supplier Microscope Models

    Olympus IX70 MTK-1-O1

    IX71 MTK-1-O2

    IX73, IX83 MTK-1-O3

    Nikon ECLIPSE TE2000 MTK-1-N1



    ECLIPSE Ti2 MTK-1-N4

    Carl Zeiss Axiovert 200, Axio Observer 3/5/7 MTK-1-Z1

    Axio Vert.A1 MTK-1-Z2

    Leica DMI3000 B, DMI4000 B, DMI6000 B MTK-1-L1

    DMi8 MTK-1-L2



    Accessories included:

    Dedicated Mounting Adaptor

    IP Iron Plate × 2 units

    Positioning Gauge

    Anchor × 2 units

    Hex Wrench

    Pipette Scale × 2 sheets

    Movement range X/Y/Z-axis Oil hydraulic control 10mm

    Full rotation of knob 250µm

    Minimum graduation 5µm


    (for holder) Oil hydraulic control 10mm

    Full rotation of knob 1,000µm

    Minimum graduation 20µm

    Manual (Return and Home position) 50mm

    Incident angle 15 ~ 40°

    Dimensions/Weight Control unit W85.6 × D225 ~ 235 × H151 ~ 171mm, Approx. 1.9kg

    Drive unit W108 ~ 138 × D145 ~ 155 × H100 ~ 150mm, Approx. 820g

    Hydraulic tube length 0.6m

Four-axis Hanging Joystick Oil Hydraulic Micromanipulator. The optimal manipulator specifically made for handling suspension cells!
