Stereo Microscopes

SZX 10

Cost-Effective Performance and Accurate Image Reproduction

  • DESCRIPTION

    A flexible imaging tool for routine research, the SZX10 stereo microscope offers darkfield and polarization imaging, a maximum numerical aperture of 0.2, a 10:1 zoom ratio, and a Galilean optical system that minimizes distortion.

  • FEATURES



  • SPECIFICATIONS

    Observation Method

    Fluorescence (Blue/Green Excitations)  ✓

    Fluorescence (Ultraviolet Excitations)  ✓

    Simple Polarized Light  ✓

    Brightfield  ✓

    Darkfield  ✓

    Oblique  ✓

    Zoom

    Zoom Ratio  10

    Magnification Indication

    0.63, 0.8, 1, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 6.3



    Motorized  ✓

    AS

    Built-in

    Features

    Zoom variable magnification system with parallel optical axis

    Zoom drive system: Horizontal handle

    Click-stop for various zoom positions incorporated(Manual)



    Optics

    Galilean Optical System  ✓

    Illuminator Fluorescence Illuminator



    Hg Lamp ✓

    Xenon Lamp ✓

    Light Guide Illumination ✓

    Focus

    Focusing Mechanism Coarse/Fine Focus ✓

    Motorized  ✓

    Load Capacity

    Manual: 0–10.0kg/ 2.7–15.0kg/ 8.0–25.0kg

    Motorized: 0.0–23.0kg

    Coarse Handle Stroke

    Manual: 80 mm/ 120 mm

    Motorized: 78 mm

    Coarse Handle Stroke per Rotation

    Manual: 36.8 mm

    Motorized: 2.7 mm

    Fine Handle Stroke per Rotation

    Manual: 0.77 mm

    Motorized: 0.27 mm

    Revolving Nosepiece

    Manual Standard Type ✓

    Observation Tubes

    Widefield (FN 22) Binocular ✓

    Tilting Binocular ✓

    Trinocular ✓

    Tilting Trinocular ✓

    Ergonomic Long Tilting Trinocular

    ✓ (Intermediate magnification is 1.25X)



    Tube Inclination Angle

    5–45°

    30°



    45°Trinocular Tube Light Path Selection (Camera : Observation)

    50%:50%, 0%:100%

    0%:100%, 100%:0%

    Interpupillary Distance Adjustment

    51–76 mm

    52–76 mm

    57–80 mm



    Extendable Eyepoint Adjuster

    Height adjustment range: 30–150mm, (with a scale attached)



    Stands Standard Stand  ✓

    Optional Bases and Stands Quad Position LED Transmitted Light Illumination Base ✓

    Single Position LED Transmitted Light Illumination Base ✓

    Large Stand ✓

    Universal Stand ✓

    Dimensions

    268 (W) × 386 (D) × 410 (H) mm (Standard Set Configuration)

    Operating Environment Indoor Use Ambient Temperature 0–40 ºC (32–104 ºF)

    Maximum Relative Humidity 30–90 %

    Eyepiece

    WHSZ10X-H FN 22*

    WHSZ15X-H FN 16*

    WHSZ20X-H FN 12.5*

    WHSZ30X-H FN 7*

    *with diopter adjustment and reticle

    Objectives

    DFPL0.5X-4, WD 171 mm, NA 0.05

    DFPL0.75X-4, WD 116 mm, NA 0.075

    DFPLAPO1X-4, WD 81 mm, NA 0.1

    SZX-ACH1X, WD 90 mm, NA 0.90

    DFPLAPO1.25X, WD 60 mm, NA 0.125

    SZX-ACH1.25X-2, WD 68 mm, NA 0.125

    DFPL1.5X-4, WD 45.5 mm, NA 0.15

    DFPL2X-4, WD 33.5 mm, NA 0.2



    Fluorescence Illuminators

    Coaxial fluorescence illuminator

    4 position filter slider

SZX 16

Meeting the Challenge of Life Science Imaging

  • DESCRIPTION

    Designed for advanced research, the SZX16 stereo microscope’s darkfield and polarization capabilities, 0.3 numerical aperture, and large 16.4:1 zoom ratio enable you to image whole organisms down to fine microscopic and individual cell structures.

  • FEATURES



  • SPECIFICATIONS

    Observation Method Fluorescence (Blue/Green Excitations)  ✓

    Fluorescence (Ultraviolet Excitations)  ✓

    Simple Polarized Light  ✓

    Brightfield  ✓

    Darkfield  ✓

    Oblique  ✓

    Zoom Zoom Ratio  16.4

    Magnification Indication

    0.7, 0.8, 1, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 6.3, 8, 10, 11.5



    Motorized  ✓

    AS

    Built-in

    Features

    Zoom variable magnification system with parallel optical axis

    Zoom drive system: Horizontal handle

    Click-stop for various zoom positions incorporated(Manual)



    Optics

    Galilean Optical System  ✓

    Illuminator

    Fluorescence Illuminator Hg Lamp ✓

    Xenon Lamp ✓

    Light Guide Illumination ✓

    Focus

    Focusing Mechanism Coarse/Fine Focus ✓

    Motorized  ✓

    Load Capacity

    Manual: 0–10.0kg/ 2.7–15.0kg/ 8.0–25.0kg

    Motorized: 0.0–23.0kg

    Coarse Handle Stroke

    Manual: 80 mm/ 120 mm

    Motorized: 78 mm

    Coarse Handle Stroke per Rotation

    Manual: 36.8 mm

    Motorized: 2.7 mm

    Fine Handle Stroke per Rotation

    Manual: 0.77 mm

    Motorized: 0.27 mm

    Features

    Motorized Zoom   ✓

    Revolving Nosepiece

    Manual Standard Type ✓

    Observation

    Tubes Widefield (FN 22) Trinocular ✓

    Tilting Trinocular ✓

    Ergonomic

    Long Tilting Trinocular ✓

    (Intermediate magnification is 1.25X)



    Tube Inclination Angle

    5–45°

    30°

    Trinocular Tube Light Path Selection (Camera : Observation)

    50%:50%, 0%:100%

    0%:100%, 100%:0%

    Interpupillary Distance Adjustment

    51–76 mm

    52–76 mm

    57–80 mm

    Extendable Eyepoint Adjuster

    Height adjustment range: 30–150mm, (with a scale attached)



    Stands

    Standard Stand  ✓

    Optional Bases and Stands Quad Position LED Transmitted Light Illumination Base ✓

    Single Position LED Transmitted Light Illumination Base ✓

    Large Stand ✓

    Universal Stand ✓

    Dimensions   268 (W) × 386 (D) × 413 (H) mm (Standard Set Configuration)

    Operating Environment Indoor Use Ambient Temperature 0–40 ºC (32–104 ºF)

    Maximum Relative Humidity 30–90 %

    Eyepiece

    WHSZ10X-H FN 22*

    WHSZ15X-H FN 16*

    WHSZ20X-H FN 12.5*

    WHSZ30X-H FN 7*

    *with diopter adjustment and reticle

    Objectives

    SDFPLFL0.3X, WD 141 mm, NA 0.045

    SDFPLAPO0.5XPF, WD 70.5 mm, NA 0.075

    SDFPLAPO0.8X, WD 81 mm, NA 0.12

    SDFPLAPO1XPF, WD 60 mm, NA 0.15

    SDFPLAPO1,6XPF, WD 30 mm, NA 0.24

    SDFPLAPO2XPFC, WD 20mm, NA 0.3



    Fluorescence Illuminators

    Near vertical fluorescence illuminator

    5 position fluorescence filter turret

    Accepts excitation balancers

Inverted Microscopes

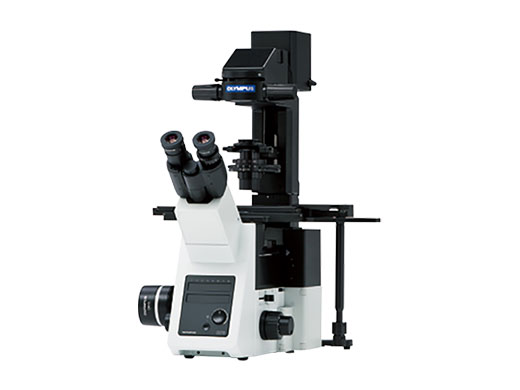

IX 73

Expandable to Meet Cinical IVF Needs

  • DESCRIPTION

    The Olympus IX73 inverted microscope has been integrated into the IXplore systems. IXplore Systems are designed to provide solutions-based packages that suit your research application needs.

  • SPECIFICATIONS

    Observation Method

    Fluorescence (Blue/Green Excitation)  ✓

    Fluorescence (Ultraviolet Excitation)  ✓

    Differential Interference Contrast (DIC)  ✓

    Phase Contrast  ✓

    Brightfield  ✓

    Observation

    Tubes Widefield (FN 22) Tilting Binocular ✓

    Trinocular ✓

    Stage Manual Plain Stage ✓

    Mechanical IX3-SVR Mechanical Stage with Right Handle

    X: 114 mm, Y: 75 mm

    Condenser Motorized Universal Condenser NA 0.55/ W.D. 26.2mm

    Manual Universal Condenser Dry: NA 0.9/ W.D. 1.5 mm, Oil: NA 1.4/ W.D. 0.63 mm (1.25 X - 100 X)

    Ultra-Long Working Distance Condenser NA 0.3/ W.D. 73.3 mm

    Dimensions (W × D × H)   323 (W) x 475 (D) x 656 (H) mm (1 Deck Standard Configuration)

    Weight   35 kg (1 Deck Standard Configuration)

Upright Microscopes

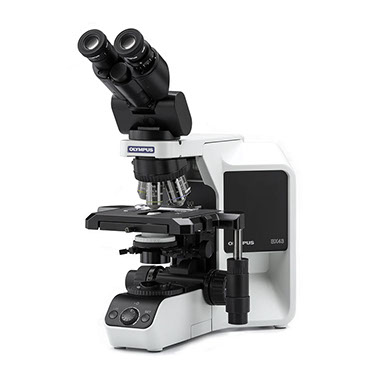

BX 43

High Performance in a Cost-Effective System

  • DESCRIPTION

    The modular BX43 microscope enables you to choose between cost-efficient and advanced configurations, depending on your needs. Modular components, such as ergonomic observation tubes and stages, make it simple to customize your microscope to your application.

  • SPECIFICATIONS

    Observation Method

    Brightfield  ✓

    Darkfield  ✓

    Phase Contrast  ✓

    Fluorescence (Ultraviolet Excitations)  ✓

    Differential Interference Contrast  ✓

    Simple Polarized Light  ✓

    Illuminator

    Transmitted Köhler Illuminator LED Lamp ✓

    30 W Halogen Lamp ✓

    Fluorescence Illuminator 100 W Mercury Lamp ✓

    Light Guide Illumination ✓

    Focus Focusing Mechanism Stage Focus ✓

    Intermediate Magnification Changer Manual Terret  ✓

    Revolving Nosepiece Manual Coded (7 positions) ✓

    Standard (7 positions) ✓

    Stage Manual Manual Stages with Right-Hand Control

    X: 76 mm (3 in.), Y: 52 mm (2 in.)

    Mechanical Oil Rectangular Stage with Right-Hand Control

    X: 76 mm (3 in.), Y: 52 mm (2 in.)

    Plain Stage Dimensions: 180 mm × 150 mm (7 in. × 6 in.)

    Rotatable Graduated Stage

    Rotation: 360 degrees

    Condenser Manual Universal Condenser NA 0.9/ W.D. 1.5 mm for 1.25X–100X [swing-out: 1.25X–4X, with oil top lens: (NA 1.4/ W.D. 0.63 mm)]

    Swing-Out Condenser NA 0.9/ W.D. 2 mm (1.25X–100X)

    Achromatic/Aplanatic Condenser NA 1.4/ W.D. 0.7 mm (oil) (10X–100X)

    Darkfield Condenser Dry NA 0.8–0.92/ W.D. 4.52 mm (10X–40X)

    Darkfield Condenser Oil NA 1.2–1.4/ W.D. 0.5 mm (20X–100X)

    Low Magnification Condenser NA 0.75/ W.D. 1.55 mm (2X–100X)

    Abbe Conenser NA 1.1/ W.D. 0.7 mm (oil) (4X–100X)

    Phase Contrast Condenser NA 1.1/ W.D. 0.7 mm (4X–100X)

    Polarizing Condenser NA 0.9/ W.D. 1.3 mm (slide glass 1.5 mm) (4X–100X)

    Observation Tubes Widefield (FN 22) Binocular ✓

    Tilting Binocular ✓

    Trinocular ✓

    Tilting Trinocular ✓

    Ergonomic Tilting Binocular ✓

    Tilting, Telescopic, Lifting Binocular ✓

    Trinocular for Infrared ✓

    Erected Trinocular ✓

    Erected Ergonomic Tilting Binocular ✓

    Super Widefield (FN 26.5) Trinocular ✓

    Erect image tilting trinocular ✓

    Dimensions (W × D × H)   274.5 mm × 362 mm × 410 mm (10.8 in. × 14.3 in. × 16.1 in.) (Standard configuration)

    Weight   13.2 kg (29 lb) (Standard configuration)

    Operating Environment Indoor Use Ambient Temperature 5 °C–40 °C (41 °F–104 °F)

    Maximum Relative Humidity 80% for temperatures up to 31 ºC (88 ºF), decreasing linearly through 70% at 34 ºC (93 ºF), 60% at 37 ºC (99 ºF), to 50% relative humidity at 40 ºC (104 ºF)

    Supply Voltage Fluctuations ±10 %

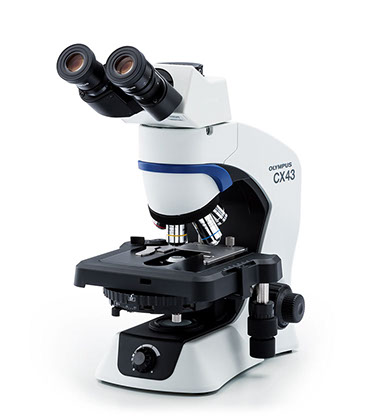

CX 43

Comfortable, High-Throughput Routine Microscopy

  • DESCRIPTION

    CX43 and CX33 biological microscopes enable you to remain comfortable during long periods of routine observation. The microscope frame conforms to your hands, and the location of the control knobs maximizes ergonomics to improve work efficiency. With minimal movement, you can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand. The microscopes can also feature an optional camera port for digital imaging.

  • FEATURES



  • SPECIFICATIONS

    Observation Method

    Brightfield  ✓

    Darkfield  ✓

    Phase Contrast  ✓

    Fluorescence (Blue/Green Excitations)  ✓(Blue Excitation only)

    Simple Polarized Light  ✓

    Illuminator

    Transmitted Köhler Illuminator LED Lamp ✓

    Fluorescence

    Illuminator LED Lamp ✓

    Focus Focusing Mechanism Stage Focus ✓

    Coarse Handle Stroke

    15 mm

    Features

    Coarse adjustment limit stopper

    Torque adjustment for coarse adjustment knob



    Revolving Nosepiece

    Manual Standard (5 positions) ✓

    Stage Manual Manual Stages with Right-Hand Control

    Built-in

    X: 76 mm, Y: 52 mm

    Condenser Manual Abbe Conenser NA 1.25 (2X–100X)

    Observation Tubes Standard (FN18) Tilting

    Binocular ✓

    Standard (FN20) Binocular ✓

    Trinocular ✓

    Tube Inclination Angle

    Binocular, Trinocular 30°

    Tilting Binocular 30°–60°

    Trinocular Tube Light Path Selection (Camera : Observation)

    50 % : 50 %

    Interpupillary Distance Adjustment

    48–75 mm

    Dimensions (W × D × H)   211 mm × 376 mm × 393 mm (8.3 in. × 14.8 in. × 15.5 in.) (standard configuration)

    Weight   Approx. 7.3 kg (16.1 lb)

<
