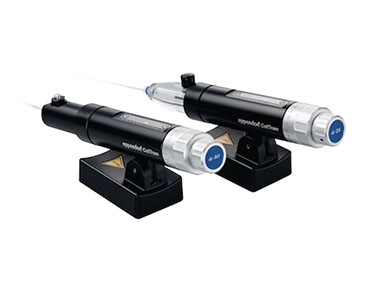

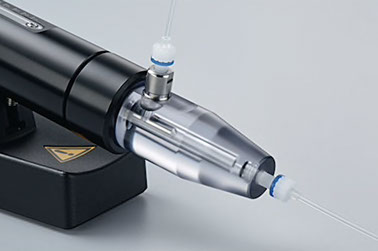

CellTram® 4r Air/Oil

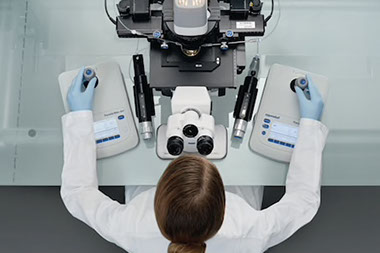

Working with the CellTram 4r Air and CellTram 4r Oil is like taking a breath of fresh air. Our new manual microinjectors have been designed with special emphasis on excellent ergonomics, ease of use and highest precision. They cover a wide range of research applications and suit all personal working techniques.

  • PRODUCT INFORMATION

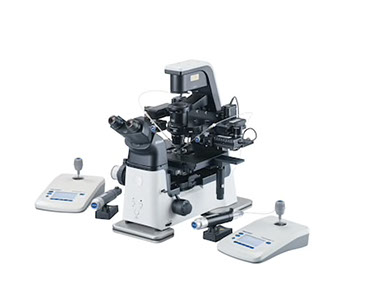

    The CellTram 4r Air and CellTram 4r Oil are manual microinjectors suitable for a broad range of life science applications. The CellTram 4r Air is a pneumatic injector for oil-free micromanipulation and gentle holding of cells in suspension. Due to its excellent performance, it is also highly suitable for uptake and injection of cells (e.g., of sperm or ES cells). For this application, its performance is comparable to that of oil-filled injectors. The CellTram 4r Oil is a hydraulic, oil-filled microinjector that provides more direct sample control and can generate higher pressures than an air system. It is optimized for leakage-free work and easy oil filling. Both models can be used with all common micromanipulation systems yet they develop their full potential with Eppendorf manipulators. The CellTram 4r Air/Oil injectors are for research use only.

    Optimal protection for your cells

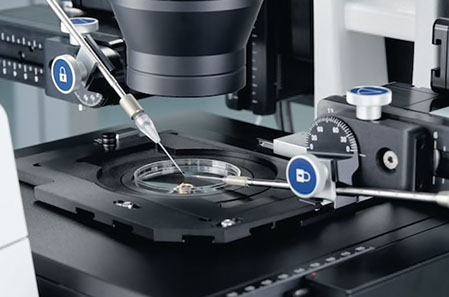

    Minimizing mechanical trauma to your sample is critical for achieving optimal results. The new capillary holder 4 (slim shape) in combination with Eppendorf manipulators allows for injecting with straight capillaries at angles lower than 15°. This helps to achieve highest survival rates for your developing embryos.

  • FEATURES

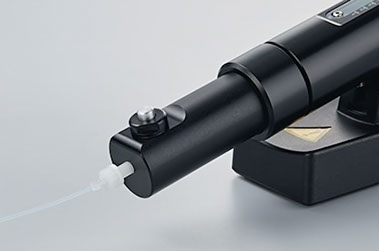

    Non-hydraulic system for oil-free manipulation and injection of cells (CellTram 4r Air)

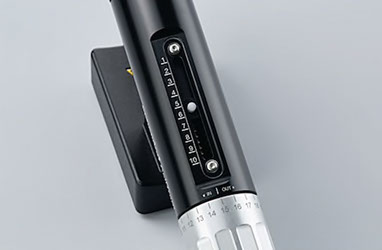

    Piston position scale enables setting of air volume and injection characteristics according to individual needs (CellTram 4r Air)

    Improved oil-filling system for minimal interruption of the workflow (CellTram 4r Oil)

    Coarse and fine drive for precise and intuitive sample control

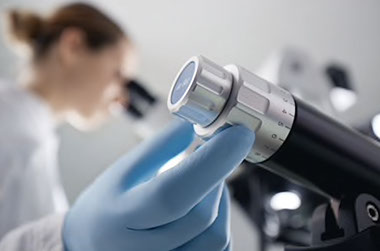

    Improved rotary knob design for better handling and easier cleaning

    Capillary holder 4 with markings for easier positioning

    New grip head 4 system for simple capillary change and higher user safety

    Position indicators and marking for in/out to reduce risk of user errors

    Stable, nonslip base plate

    Highly reliable performance with minimal maintenance

  • SPECIFICATIONS

    Exterior

    Dimensions 403 x 225 x 155 mm (w x d x h)

    Weight 8.8 kg

    Interior

    Two chambers with 0.5 liters each

    Mixed load possible

    Temperature

    Overall heating from top and bottom of each chamber

    Range 30 °C - 42 °C from 7 °C above

    ambient temperature

    Stability / uniformity ± 0.1 °C / ± 0.3 °C

    Gassing

    Premixed gas

    Gas flow adjustable between 20 ml/min and 30 ml/min

    Flow rate after opening the lid (automatic gas purge):

    250 ml/min for 3 minutes

    Power Supply

    110 – 230 V AC, 50/60 Hz, 100 VA

    Primary pressure for gas 0.8 bar

    Ambient temperature 18 °C - 30 °C

    Classification

    Safety class II

    Class IIa for every usage according to EC-Directive 93/42/EEC

    EN 61010 conform

  • CELLTRAM 4R AIR

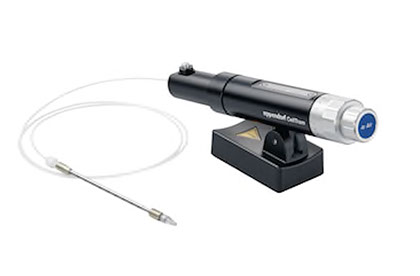

    CellTram® 4r Air, manual pneumatic microinjector, with gears 1:1 and 1:10, for holding and injectionCatalog No. 5196000013

  • CELLTRAM 4R OIL

    CellTram® 4r Oil, manual hydraulic microinjector, with gears 1:1 and 1:10, for holding and injectionCatalog No. 5196000030

RELATED PRODUCTS

Tube connector



Catalog No. 5176220009

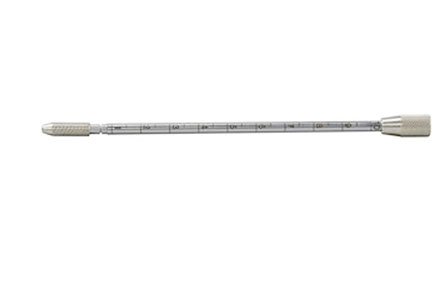

Capillary holder 4, for mounting microcapillaries



Catalog No. 5196081005

Grip head set 4 size 0, for microcapillaries with outer diameter 1.0 to 1.1 mm (1 only)

Catalog No. 5196082001

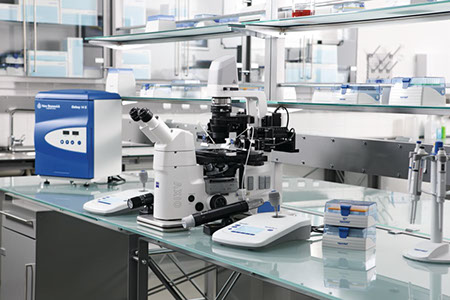

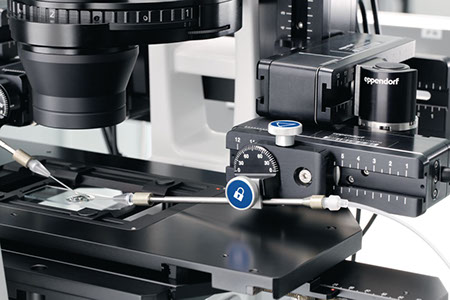

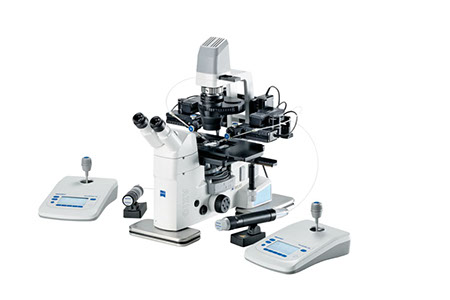

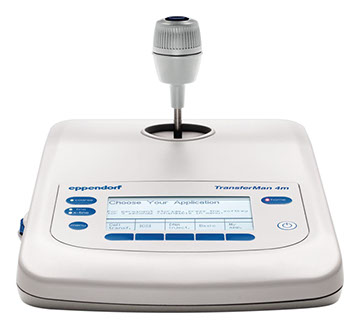

TransferMan® 4m

The innovative and user-friendly TransferMan 4m continues Eppendorf's 20-year-long tradition in the field of IVF. It has been designed for intuitive operation and optimal performance for a variety of applications in human reproductive medicine. With its exceptionally direct transmission of movement in all directions, the TransferMan 4m provides a “real time feeling” for the user. Its DualSpeed™ joystick features a dynamic speed mode for covering longer distances or speeding up sample processing.

  • PRODUCT INFORMATION

    Product Overview:

    The innovative and user-friendly TransferMan 4m continues Eppendorf's 20-year-long tradition in the field of IVF. It has been designed for intuitive operation and optimal performance for a variety of applications in human reproductive medicine. With its exceptionally direct transmission of movement in all directions, the TransferMan 4m provides a “real time feeling” for the user. Its DualSpeed™ joystick features a dynamic speed mode for covering longer distances or speeding up sample processing.

  • FEATURES

    Features:

    • Unprecedented direct transmission of movement without any recognizable latency

    • Unique DualSpeed™ joystick for precise and instantaneous movement control

    • One-hand operation for capillary and angle settings

    • Programmable Z-axis limit for preventing capillary breakage

    • Maximum stability ensures vibration-free work

    • Can be adapted to all conventional microscopes

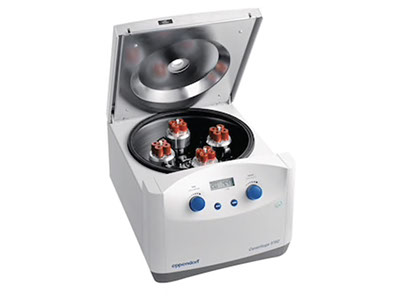

Centrifuge 5702 rotary knobs, non-refrigerated, without rotor, 120 V/60 Hz (US)

The 5702 family of low speed, general purpose centrifuges was especially designed to meet the requirement of low- to mid-throughput research and cell culture labs. They are compact in design so that one can fit comfortably on every lab bench, quiet in operation to benefit your work environment, and provide 6 different rotor options to accommodate any type of tube.



Catalog No. 022626001

  • PRODUCT INFORMATION

    The CellTram 4r Air and CellTram 4r Oil are manual microinjectors suitable for a broad range of life science applications. The CellTram 4r Air is a pneumatic injector for oil-free micromanipulation and gentle holding of cells in suspension. Due to its excellent performance, it is also highly suitable for uptake and injection of cells (e.g., of sperm or ES cells). For this application, its performance is comparable to that of oil-filled injectors. The CellTram 4r Oil is a hydraulic, oil-filled microinjector that provides more direct sample control and can generate higher pressures than an air system. It is optimized for leakage-free work and easy oil filling. Both models can be used with all common micromanipulation systems yet they develop their full potential with Eppendorf manipulators. The CellTram 4r Air/Oil injectors are for research use only.

    Optimal protection for your cells

    Minimizing mechanical trauma to your sample is critical for achieving optimal results. The new capillary holder 4 (slim shape) in combination with Eppendorf manipulators allows for injecting with straight capillaries at angles lower than 15°. This helps to achieve highest survival rates for your developing embryos.

  • FEATURES

    Max. speed: 3,000 × g (4,400 rpm)

    Very compact footprint to fit on every lab bench

    Very quiet operation to benefit your environment

    Low access height for simple loading and unloading of samples

    SOFT brake function for slow acceleration and braking. Optimized for cell separation by gradient centrifugation

    “At set RPM” function starts the timer when the selected rotational speed is reached for reproducible centrifugation runs

    Key lock to prevent unintentional adjustments

    Stainless steel rotor chamber is rust-free and easy to clean

    Electronic imbalance detection for maximum safety

Eppendorf® Compact Centrifuge Accessories

EPP 022639200

17.2mm Diam. Rotor Adapter for 2 x 15mL Conical Tubes (Non-aerosol Tight), for 100mL Round Bucket in Rotor A-4-38

Product Type:



Adapter

For Use With:



for 2 x 15mL Conical Tubes (Non-aerosol Tight), for Rotor A-4-38 swing bucket rotor (round bucket) for Eppendorf 5702
