Tri-Gas Mixer

The Tri-Gas Mixer is a digital CO2-O2 controller that mixes CO2, Air and N2 to the desired concentration ranging between 0-10% for both CO2 and O2, and at controlled pressure in the range of 0-2 barg (0-30 psig).

Delivery pressure is easily regulated by adjusting the knob of the embedded pressure gauge. The device is equipped with a mixing tank to ensure the highest composition stability even when the required output flow is variable.

The Tri-Gas Mixer is compatible with any mini-incubator available on the market.

Features

Output pressure in the range of 0-2 barg (0-30 psig)

CO2 and O2 accuracy: ±0.1%

Automatic switch to backup cylinder upon alarm

On board memory for data logging

Auto calibration with an external calibration gas

0-10 V or 0/4-20 mA analog output linear with the actual gas composition, for remote monitoring with an external data logger

Contact closure alarm

Auto diagnostic procedure

VOC-IN-BYPASS (optional) : VOC filter's holder with bypass panel to saturate newly installed filters with CO2 before using them with the trigas mixture

CO2-O2-MODULE

The Tri-Gas Mixer is equipped with a CO2-O2-MODULE, which contains the CO2 and O2 sensors.

The CO2-O2-MODULE measures with a high accuracy the CO2-O2 volume concentrations allowing automatic fine-tuning of the output gas. The CO2-O2-MODULE is factory calibrated using certified gas cylinders, and the factory calibration certificate is included in electronic format.

The CO2-O2-MODULE can be conveniently calibrated on-site with intuitive routines or can be easily extracted from the Tri-Gas Mixer, replaced with a spare CO2-O2-MODULE and sent out for calibration.

In both cases, there is no need to disconnect or turn off the Tri-gas Mixer to discontinue the gas supply to the incubators.

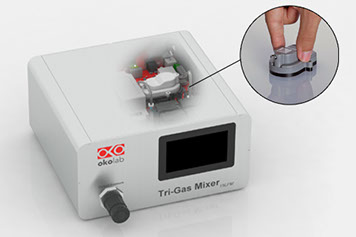

CO2-O2-MODULE in Tri-Gas mixer

Self Calibration

The Tri-Gas Mixer features the self calibration procedure to periodically calibrate the CO2 and O2 sensors. It does this by using a connected calibration gas with a concentration close to what is used during the standard working condition.

The self calibration procedure is automatically and periodically repeated to maintain high accuracy for your operations. Moreover, the self calibration procedure can be manually started with an intuitive procedure.

The Tri-Gas Mixer always sends the proper gas to the connected incubators, even during the self calibration procedure.

Models

The Tri-Gas Mixer is compatible with any bench-top incubator available on the market.

Models are available with maximum output flow rate of 1.5 L/min and 15 L/min. The actual flow rate delivered automatically adjusts to match the requirements of the connected equipment.

TRI-GAS-MIXER-1.5L + AIR-COMPRESSOR-CP3-1.5L

TRI-GAS-MIXER-15L + AIR-COMPRESSOR-CP3-15L

Safety Features

The Tri-Gas Mixer features advanced safety routines to ensure that the incubators always receive the proper gas.

To enable the safety routines the Tri-Gas Mixer must also be connected to a premixed backup cylinder containing gas of the desired concentration.

The mixer will automatically switch to the premixed backup gas if any of the following conditions occurs:

• Pressure in the mixing tank becomes too low (for instance due to gas requirement exceeding maximum mixer capacity)

• Pressure of any of the input gasses becomes too low

• Target gas concentration cannot be achieved.

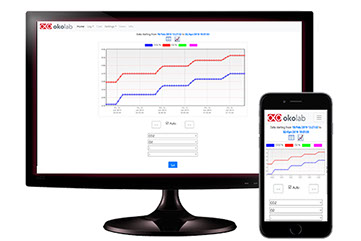

Remote Data Viewer

The Tri-Gas mixer features wireless and ethernet connections. The remote data viewer allows:

Alarm alert through email

Remote Data access

Data history tables and charts

Android and IOS mobile app will be avaiable soon. procedure.

Remote Data Viewer

REQUIRED CONTROLLERS

H401-T-CONTROLLER

2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.

External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.

On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.

The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.

Features

T - range: from ambient to 60°C

T - accuracy on specimen: ± 0.3°C

4.3'' touch screen interface

External T - sensor (included)

On-board Data logging and download routines to USB drive

On-board logging of calibration and alarm events

Alarm buzzer and External Alarm Connector

One controllers can control independently up to two devices

Self calibration routines allow to improve temperature accuracy

Password protected procedure for periodic calibration against certified thermometer

H401-T-PENNY

H401-T-PENNY is a compact single-channel Temperature Controller compatible with any OKOLAB heating device that combines performance and simplicity at an unbeatable price.

Features

Temperature range: from ambient to 60°C

Set point resolution: 0.1°C

Calibration via addition of offset

Maximum Output: 60 W

Dimensions: 83.65x45.05x20.20 mm

Weight: 47.50 g
