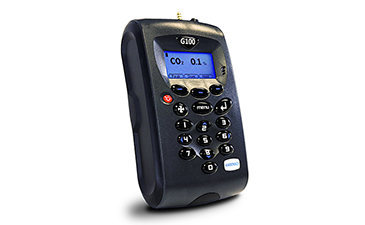

QED Viasensor G100 analyzer is specifically designed to monitor CO2 for the verification of incubators in IVF, medical, research and other pharmaceutical markets. This unit has been developed to incorporate the latest technology and specifications requirements, that provide the user with a fast, simple-to-use and accurate piece of laboratory kit.
Improved accuracy on CO2
Quick verification of CO2 incubator levels
Time saving with dual temperature probes
Easy to read large well-lit display
Calibrated to ISO/IEC 17025
Built in gas moisture removal
Local support and calibration/repair facility centrally located in Dexter, Michigan
The G100 CO2 analyzer was specifically designed to monitor carbon dioxide for the verification of incubators in IVF, medical research and pharmaceutical markets. This analyzer is utilized by embryologists, lab technicians, scientists and stem cell researchers.
Measures CO2 0-20%
Available with option to measure O2 (0-100%)
Dual temperature probes 32°F – 122°F (0-50C)
Humidity probe (0-100%)
Data storage and download capabilities with ADM Software purchase
Easy user calibration for improved accuracy
Self-test and self-monitoring on start up
Lightweight, portable analyzer for ease of use in laboratory

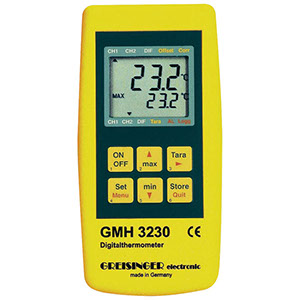

Greisinger GMH 3230 Digital Thermometer
The Greisinger GMH 3220 is a Digital Precision Quick-Response Thermometer for Thermocouples. This Thermometer is able to use five different thermocouples, (types J, K, N, S, T). The connection is via miniature thermocouple connector. The two-line display, keypad and dust-tight enclosure allow a user-friendly and reliable operation.
The thermometer is suitable for all quick-response, high-precision temperature measurements.
Freely programmable analogue output 0 to 1V or serial interface
Connection 5 different thermocouples (type J, K, N, S, T)
Temperature display in °C or °F (optional)
Possibility to correct the measured value when measuring surface temperature
Minimum and maximum memory of measured values, HOLD function
The possibility of entering the zero point correction
Operation from battery or AC adaptor
Low power consumption 1.6mA
Battery life: 1000 hours with a standard 9V battery (included)
Probes not included
Manufacturer's part: Greisinger GMH 3230
Measuring Device, InControl 1050, InControl
Independent measuring device for control and evaluation of CO2, temperature and O2
Accurate measuring of CO2, temperature and optional O2
Single or continuous measurement in arbitrary intervals
Measurement and documentation of multiple incubators
Documentation of measurements with date, time and incubator number
Easy menu navigation
Data-Download via USB; PC software DataVISUAL`09 incl.
Continuous operation by Li-Ion battery or mains adapter possible
Case Plastic (ABS)
CO2 measurement Dual beam infrared sensor
Range: 0 - 10 % CO2
Display definition: 0.1 % CO2
0 - 6 % CO2 ± 0.2 % CO2
6 % - 10 % CO2 ± 0.3 % CO2
Sample volume per measurement (2 min.): approx. 0.8 l
Temperature measurement Platinum temperature sensor PT1000
Range: 0 - 100 °C
Display definition: 0.1 °C
20 °C - 50 °C ± 0.2 °C
50 °C - 100 °C ± 0.3 °C
O2 measurement Galvanic sensor
Range: 0 - 100 % O2
Display definition: 0.1 % O2
O2 sensor not included
Recording of measurement logging in arbitrary intervals
Output of measurements via:
PC software Data Visual’09 (via USB data cable)
Interval for data logging: 15 - 120 min., adjustable in steps of 5 min.
Storage of max. 1008 measurements with date and time
Power supply Rechargeable Li-Ion battery
Power supply 100 – 240 V AC, 5 V DC 1.5 A
Operation time Use of rechargeable battery approx. 4 h
Time to recharge battery approx. 4 h

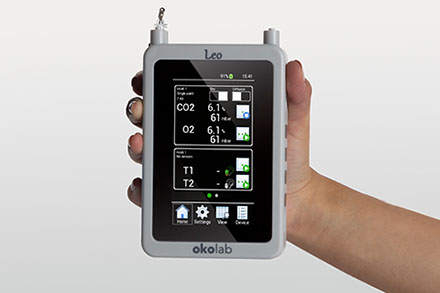

OKO Lab- LEO
LEO is a hand-held meter for IVF application. It allows measurement of CO2-O2 gas composition, temperature, relative humidity, and gas flow of high-top and bench-top incubators, by using multiple sensor modules.
NextGen LifeLabs provides specialized, cutting-edge equipment, services, and support for the modern A.R.T. laboratory. The ONLY Company that customizes equipment to meet your needs.
