SENSORS



Connect up to 12 sensors to monitor temperature, humidity, power failure, water leaks, equipment and more. The Sentinel Pro adds the ability to poll up to 64 Modbus registers.

How It Works

SENTINEL



Once the sensors are connected, connect the Sentinel to the internet or activate the cellular service. Your Sentinel instantly begins monitoring and collecting data.

ALARMS



Need to know when something is wrong? The Sentinel can call, text or email alarms to an unlimited number of contacts. A flexible alarm delivery system allows unlimited customization that includes different users and alarm destinations.

DATALOG



Are you responsible for keeping tabs on your application? Do you need proof that everything was okay? No problem. Enhanced data logging capabilities allow users to print, graph or export accurate historical records.

REAL-TIME STATUS UPDATES



Away on vacation? At the beach for the weekend? Check on your system by using the Sentinel app or logging into your account from any mobile device. Get access to real-time data without leaving the couch.

IN THE CLOUD



Log in to sensaphone.net and create a free account to access, program and view real-time data from your Sentinel.

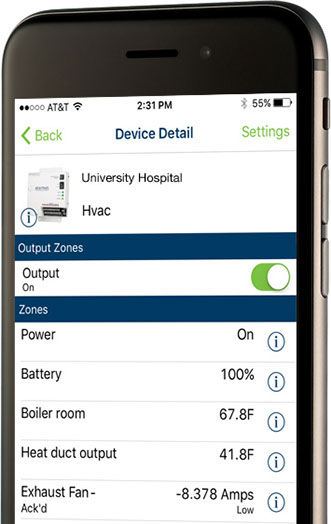

Mobile App

Monitor Your Environment Anywhere, Anytime

The cloud-based Sentinel allows you to monitor remote facilities and environments. Check the status of critical equipment with the same degree of certainty you’ve come to expect from Sensaphone.



Sentinel offers immediate access to your readings. Monitor your environment from anywhere using a simple, powerful web-based interface and mobile app. If there’s a disruption, you’ll be the first to know. Alerts can be sent straight to your mobile device—keeping you updated and giving you peace of mind wherever you are.



With the Sentinel mobile app, it’s quick and easy to:



Check the real-time status of your system

Acknowledge alarms

Make programming changes



  • DESCRIPTION

    The Sentinel Monitoring System with Cellular Modem offers an easy-to-install, easy-to-configure monitoring solution for locations with no access to a landline or Internet connection. The Sentinel system monitors up to 12 different environmental and equipment status conditions including temperature, humidity, power failure and water detection. When the system identifies issues, it instantly sends alerts via phone, text or email over a cellular connection. It can also deliver daily event reports, and provide audit logs. Users can access information and make system changes from any web-enabled device. The system stores all readings in the cloud, which protects against data loss, provides unlimited information storage and allows multiple devices to be managed from one account. No software is required, so installation, integration and management are easy.

  • SPECIFICATIONS

    Number of Inputs 12

    Communication Method 4G/LTE Cellular Modem for use on Verizon, AT&T or Rogers

    Input Types Contact, 2.8K, 10K, 4-20mA

    Temperature Sensing Range -109° to 168°F | -85° to 76°C

    Output Relay One low voltage NO/NC relay output

    Manual or automatic alarm switching

    Remote Access Website to access status and programming

    Local Access LEDs for Alarm Status, Power Status, and Cellular link

    Alarm Notifications An unlimited number of email, text or phone calls

    Power Requirements Power Requirement: 12-24DC

    • Comes with 12VDC plug-in power supply

    • International power options available

    Current Draw: 300mA at 24VDC

    Data Logging Unlimited samples securely stored on the Sentinel servers

    Programmable sampling Interval - 1 min to 24 hrs

    Battery Backup 8-Hour rechargeable battery backup for both the Sentinel & Cellular modem included

    Physical 12.5 x 12.2 x 7.0” | 318 x 310 x 178mm

    10.5lbs. | 4.7kg

    Antenna 2G/3G/4G Frequencies: 698-960/1710-2700MHz

    Peak gain: 5dBi

    Pattern: Omni-directional

    Height: 6.45” (164mm)

    Diameter: 1.90” (48mm)

    IP Rating: IP-66

    Operating Temp: -40F to 176F (-40C to 80C)

Cloud-Based Monitoring... Without Network Connections



The Sentinel Monitoring System with Cellular Modem offers an easy-to-install, easy-to-configure monitoring solution for locations with no access to a landline or Internet connection. The Sentinel system monitors up to 12 different environmental and equipment status conditions including temperature, humidity, power failure and water detection. When the system identifies issues, it instantly sends alerts via phone, text or email over a cellular connection. It can also deliver daily event reports, and provide audit logs. Users can access information and make system changes from any web-enabled device. The system stores all readings in the cloud, which protects against data loss, provides unlimited information storage and allows multiple devices to be managed from one account. No software is required, so installation, integration and management are easy.

INCLUDED: Internal rechargeable battery-backup system will provide 8 hours of continuous monitoring and alerting in the event of a power outage.

INCLUDED: Power failure monitoring

INCLUDED: Weatherproof NEMA 4-X enclosure

“Available Input Cards are available (slots 2 thru 5)”





INCLUDED: Internal rechargeable battery-backup system provides 12 hours of continuous monitoring and alerts in the event of  power outage

INCLUDED: Microphone for sound level monitoring

INCLUDED: Power failure monitoring

NO MONTHLY FEES: unlike other systems that require ongoing expenses

Auto Dialer Alarm that Grows with Your Needs

The Sensaphone Express II Monitoring System is an excellent choice for large facilities that require many monitoring points or are planning future expansion. Previously called "auto dialers," these systems notify you if they detect dangerous temperatures or other conditions.



Housed in a NEMA-4X enclosure, the Express II is protected from dust, dirt, and moisture both indoors and out. The system includes eight inputs and one built-in relay output. The system is expandable up to 40 total input/output channels. The LCD not only shows continuous input status, but assists with keypad programming for simple and easy setup.

  • DESCRIPTION

    The Sensaphone Express II Monitoring System is an excellent choice for large facilities that require many monitoring points or are planning future expansion. Previously called "auto dialers," these systems notify you if they detect dangerous temperatures or other conditions.



    Housed in a NEMA-4X enclosure, the Express II is protected from dust, dirt, and moisture both indoors and out. The system includes eight inputs and one built-in relay output. The system is expandable up to 40 total input/output channels. The LCD not only shows continuous input status, but assists with keypad programming for simple and easy setup.

  • FEATURES

    Monitoring system/auto dialer is ideal for monitoring facilities with expanding needs

    Allows for future expansion with up to 40 total inputs and up to 16 output zones

    Receive voice alerts and alarm notifications over standard telephone lines

    Notifies up to 48 people by voice phone call in the event of an alarm

    Increase monitoring capability with easy-to-install expansion input and output cards

    Included relay output can switch local devices on/off based on alarm activity

    Temperature-sensing range of -85° to 300°F | -65° to 149°C

    Record custom voice alerts and receive alarm messages in your own voice

    Rugged, weatherproof NEMA-4X enclosure offers protection in harsh environments

    Made in USA

  • CAPABILITIES

    Sensaphone Express II Monitoring System

    Business owners now have a comprehensive solution to their remote-monitoring needs – with the full flexibility of an autodialer system that can expand as their needs grow. The Sensaphone Express II Monitoring System is an easy-to-configure, cost-effective answer for growing facilities with expanding needs.





    Capabilities: The system includes eight inputs and one output as standard and is expandable to include as many as 40 total input/output channels. The unit can read status from digital or analog sensors including on/off status, open/closed status, actual temperatures, and real time values such as tank levels or flow rates. The system can also monitor sounds levels, the internal battery condition, and detect power failures. The Express II offers temperature sensing across a range from -85° to 300°F. This system offers the added flexibility of complete, remote programming capability by way of touch-tone telephone communications.



    Features: The system includes a built-in output relay to switch external devices on or off automatically or manually – tripping local lights or sirens. Special dialing schedules and a phone contact list feature allow users to create their own priority dialing lists depending on which alarm input is activated and when. The unit also features built-in power-failure monitoring.



    Alerts: Users have the ability to record customized descriptive alert messages on as many as 48 user-programmable dial-out numbers. This allows them to receive unique alarm messages in their own voice with custom dialing options for each alarm input.



    Includes: The system includes a 12-hour power backup with rechargeable gel-cell batteries and a plug-in power supply that monitors for power failure.

  • TECH SPECS

    Communication Method Phone line

    Number of Inputs 8 Standard, expandable to 40

    Input Types Contact, 2.8K, 10K, & 4-20mA

    Temperature Sensing Range -85° to 300°F | -65° to 149°C

    Output Relay One universal output relay standard, expandable to 17 total

    Manual or automatic alarm switching

    Remote Access Call in to check status and make programming changes

    Local Access Keypad and speaker for local programming

    Easy voice prompted programming

    Password Protected

    LEDs

    Alarm Notifications 48 custom voice phone calls

    Power Supply Plug in power supply also monitors for power failures

    Internal battery backup

    Physical 14.5 x 13 x 8.3” | 368 x 330 x 210mm • 18lbs | 8.1kg

    Warranty 1 Year

    Standards UL Standard 1950 "Information Technology Equipment"

    CSA Standard 22.2 #950.

    Battery Backup Time 12 hours

Auto Dialer Temperature Alarm Provides Instant Notifications

Product Details: The Sensaphone 400 & 800 Monitoring Systems offer small-business owners, vacation property owners, and other property managers an easy and inexpensive way to monitor a remote facility. Previously called "auto dialers," these systems notify you if they sense undesirable temperatures or other conditions.



When the system is connected to a standard telephone line, you can record custom “Alert Condition” notifications and receive alarm messages in your own voice. This system can set off a local alarm if a phone line is cut and control a thermostat to adjust site temperature between two set points. Nonvolatile memory retains system settings in the event of power loss. You can call in by phone to get the status of each monitored condition.

  • DESCRIPTION

    Auto Dialer Temperature Alarm Provides Instant Notifications

    Product Details: The Sensaphone 400 & 800 Monitoring Systems offer small-business owners, vacation property owners, and other property managers an easy and inexpensive way to monitor a remote facility. Previously called "auto dialers," these systems notify you if they sense undesirable temperatures or other conditions.



    When the system is connected to a standard telephone line, you can record custom “Alert Condition” notifications and receive alarm messages in your own voice. This system can set off a local alarm if a phone line is cut and control a thermostat to adjust site temperature between two set points. Nonvolatile memory retains system settings in the event of power loss. You can call in by phone to get the status of each monitored condition.

  • FEATURES

    Monitoring unit/auto-dialers are now available in white or grey

    Simple, convenient, cost-effective remote monitoring for vacation homes and property managers

    Record custom voice alerts and receive alarm messages in your own voice

    Receive voice alerts and alarm notifications over standard telephone lines

    Notifies up to four people by voice phone call in the event of an alarm

    Up to four or eight external sensors monitor temperature, humidity, water, and more

    Included relay output can switch local devices on/off based on alarm activity

    Temperature-sensing range of -20° to 150°F | -30° to 65°C

    Use a dual setback thermostat to control temperature between two set points

    Made in USA

  • CAPABILITIES

    Sensaphone 400 & 800 Monitoring Systems

    Now small-business owners, remote property managers, and many others have an inexpensive, easy-to-install autodialer solution for their remote-facility monitoring needs. The Sensaphone 400 or 800 can be installed in nearly any clean indoor environment and alert personnel by phone to a number of conditions that could require their attention.





    The Sensaphone 400 provides four available external inputs allow users to connect a variety of sensors to monitor temperature, water, humidity, and more. Each zone can be calibrated, enabled, or disabled individually – with fully automatic input configuration. The system can monitor for power failures and listen for high sound levels. With built-in status LEDs, each monitored condition is easily read at the installation site or remotely by telephone. Features: The built-in output relay can switch external devices on or off automatically or manually – tripping local lights or sirens. The output can even control a thermostat to adjust site temperature between two set points. With built-in surge protection on all zones, the unit power supply, and the connected telephone line guard against voltage spikes. Alerts: When connected to a standard telephone line, the system allows users to record custom voice messages. In the event of an alarm, the system can send these “Alert Condition” messages by phone to as many as four people – repeating those calls until it receives a response. A line-seize feature automatically disconnects extension lines when the system needs to call out. Includes: A pre-installed temperature sensor to monitor the installation location and a 24-hour battery backup to ensure reliable operation during a power outage. Upgrade to the Sensaphone 800 to use up to eight inputs or phone call out numbers.

  • TECH SPECS

    Communication Method Phone Line

    Number of Inputs 4 or 8

    Input Types Contact & 2.8K

    Temperature Sensing Range -20° to 150°F | -30° to 65°C

    Output Relay One low voltage NO/NC relay output

    Manual or automatic alarm switching

    Remote Access Call in to check status and make programming changes

    Microphone for listen in status

    Local Access Keypad and speaker for local programming.

    Easy voice prompted programming.

    Password Protected

    LEDs

    Alarm Notification The Sensaphone 400 provides four custom voice phone calls

    The Sensaphone 800 provides eight custom voice phone calls

    Power Supply Plug in power supply also monitors for power failures

    Internal battery backup (requires 6 'C' cell batteries)

    Physical 2.1 x 7.8 x 8.8” | 53 x 198 x 223mm

    2lbs | .9kg

    Enclosure Indoor-rated plastic housing suitable for wall or desktop installation.

    Warranty 1 Year

    Standards FCC Part 15 Class B, USA Emission Standards

    FCC Part 68 (47 C.F.R. Part 68), USA Telecommunications Standards

    ICES-003 Issue 4 Class B, Canadian Emission Standards

    Complies with CS-03 Issue 8, Canadian Telecommunications Standards

    NRTL Listed for compliance to UL60950-1, USA Safety Standards

    NRTL Listed for compliance to CSA C22.2 No. 60950-1, Canadian Safety Standards

    RoHS Compliant

    Battery Backup Time 24 hours

INCLUDED: Internal rechargeable battery-backup system provides 12 hours of continuous monitoring and alerts in the event of  power outage

INCLUDED: Microphone for sound level monitoring

INCLUDED: Power failure monitoring

NO MONTHLY FEES: unlike other systems that require ongoing expenses
